Workstations
A full range of tower and rackmount workstations are available from CCI. These products are provided in everything from small-footprint platforms to full tower and rackmount configurations. Several of these systems are ideal for entry-level graphic processing requirements and many are available with extended life (XL) options. Our range of client devices is too extensive to list on our website, but the core products are listed below.
Whether you are on a tight budget or need heavy processing power, the workstations that we offer make it easy to obtain the performance you need, in the price range you want.

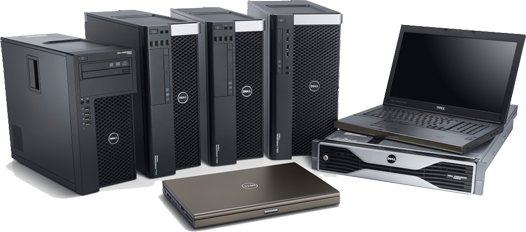

DELL Precision Workstations
| Dell Precision Workstations | 3430 Tower | 3630 Tower | 3930 Rack | 5820 Tower | 7820 Tower | 7920 Tower | 7920 Rack |
|---|---|---|---|---|---|---|---|
| Chassis Type | Tower | Tower | Rack | Tower | Tower | Tower | Rack |
| Tower/Rack Height | Mini Tower SFF | Mini Tower | 1U | Mid Tower | Mid Tower | Mid Tower | 2U |
| CPU Sockets | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
| CPU Family | Intel Xeon E2100/i3/i5/i7/ G5400 |
Intel Xeon E1200/i3/i5/i7 | Intel Xeon E2100/i3/i5/i7 | Intel Xeon W Series | Intel Xeon Scalable | Intel Xeon Scalable | Intel Xeon Scalable |
| Maximum Cores per CPU | 6 Cores/CPU | 4 Cores/CPU | 6 Cores/CPU | 18 Cores/CPU | 28 Cores/CPU | 28 Cores/CPU | 28 Cores/CPU |
| Maximum Memory | 64GB | 64GB | 64GB | 256GB | 384GB | 3TB | 3TB |
| Maximum Drive Bays | 2 x 2.5″ or 1 x 3.5″ Internal | 3 x 2.5″ or 3 x 3.5″ Internal | 4 x 2.5″ or 2 x 3.5″ | 6 x 2.5″ HS or 5 x 3.5″ HS | 6 x 2.5″ HS or 5 x 3.5″ HS | 10 x 2.5″ HS or 10 x 3.5″ HS | 8 x 2.5″ HS or 8 x 3.5″ HS |
| Maximum Power Supplies | Single Fixed 360W | Single Fixed 460W | Dual 550W | Single 950W | Single 950W | 1400W | Dual 1600W |
| BOSS/M.2 Option |  |
|
|
|
|
|
|
| Ext/Optical Drive Bay | |
|
 |
|
|
|
|
| NVMe Drive Option | |
|
|
|
|
|
|
| Integ Storage Option | |
|
|
|
|
|
|
| Integrated controller option | (SATA) |
(SATA) |
(SATA) |
(SATA) |
(SATA) |
(SATA) |
(SATA) |
| Physical Dimensions | H: 29.0 cm (11.42 in) W: 9.3 cm (3.7 in) D: 29.2 cm (11.5 in) |
H: 33.1 cm (13.0 in) W: 17.7 cm (7.0 in) D: 34.5 cm (13.6 in) |
H: 42.8 mm (1.7 in) W: 482 mm (18.9 in) D: 578 mm (22.7 in) |
H: 41.4 cm (16.3 in) W: 17.3 cm (6.8 in) D: 47.1 cm (18.6 in) |
H: 41.4 cm (16.3 in) W: 17.3 cm (6.8 in) D: 47.1 cm (18.6 in) |
H: 43.3 cm (171 in) W: 21.8 cm (8.6 in) D: 56.6 cm (22.3 in) |
H: 86.8 mm (3.42 in) W: 434 mm (17.1 in) D: 715.5 mm (28.17 in) |
| Maximum Weight | 6.9 kg (15.1 lb) | 10.6 kg (23.4 lb) | 19.4 kg (42.7 lb) | 19.1 kg (42.2 lb) | 19.1 kg (42.2 lb) | 29.5 kg (65.0 lb) | 28.6 kg (63.1 lb) |
| REVIEW PDF | Know More | Know More | Know More | Know More | Know More | Know More | Know More |
Lenovo Workstations
| Lenovo Workstations | P340 Tiny | P340 SFF | P340 Tower | P520 | P520c | P620 | P720 Tower | P920 Tower | P920 Rack |
|---|---|---|---|---|---|---|---|---|---|
| Chassis Type | Desktop | Tower | Tower | Tower | Tower | Tower | Tower | Tower | Rack |
| Tower/Rack Height | Tiny | Small FF | Tower | Mid Tower | Mid Tower | Mid Tower | Mid Tower | Large Tower | 2U |
| CPU Sockets | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
| CPU Family | 10th Gen Intel Core /i3/i5/i7/i9 | 10th Gen Intel Core i3/i5/i7/i9 Xeon W | 10th Gen Intel Core i3/i5/i7/i9 Xeon W | Intel Xeon W Series | Intel Xeon W Series | AMD Threadripper Pro | Intel Xeon Scalable (Bronze, Silver, Gold, Platinum) | Intel Xeon Scalable (Bronze, Silver, Gold, Platinum) | Intel Xeon Scalable |
| Maximum Cores per CPU | 4/6/8/10 Cores | 4/6/8/10 Cores | 4/6/8/10 Cores | 4/6/8/10/12/14/18 Cores | 4/6/8/10/12/14/18 Cores | 12/16/32/64 Cores | Up to 24 Cores per CPU or 48 Total | Up to 28 Cores per CPU or 56 Total | Up to 28 Cores per CPU or 56 Total |
| Maximum Memory | 64GB | 128GB | 128GB | 512GB | 256GB | 1TB | – | 2TB | 3TB |
| Maximum Drive Bays | 2 x M.2 SSD (Max 2TB) | M.2 PCIe NVMe SSD up to 2TB 3.5″” SATA 7200rpm up to 6TB 2.5″” SATA SSD up to 1TB |
M.2 PCIe NVMe SSD up to 2TB 3.5″” SATA 7200rpm up to 6TB 2.5″” SATA SSD up to 1TB |
M.2 PCIe SSD up to 2TB 3.5″” SATA 7200rpm up to 6TB 2.5″” SATA SSD up to 2TB 2.5″” SATA HDD up to 500GB |
M.2 PCIe SSD up to 2TB 3.5″” SATA 7200rpm up to 6TB 2.5″” SATA SSD up to 2TB 2.5″” SATA HDD up to 500GB |
M.2 PCIe SSD up to 2TB 3.5″” SATA 7200rmp up to 4TB 2.5″” SATA SSD up to 2TB |
M.2 PCIe SSD up to 2TB 3.5″” SATA HDD 7200rpm up to 6TB 2.5″” SATA SSD up to 2TB |
M.2 PCIe SSD up to 2TB 3.5″” SATA HDD 7200rpm up to 6TB 2.5″” SATA SSD up to 2TB |
3.5″ SATA HDD 7200RPM up to 14TB2 M.2 SATA SSD up to 480GB2 NVMe SSD AIC up to 6.4TB2 |
| Maximum Total Storage | 4TB | Up to 6 total drives Max M.2 = 4 (8TB) Max 3.5″ = 1 SFF (6TB) Max 2.5″ = 1 SFF (1TB) |
Up to 6 total drives Max M.2 = 4 (8TB) Max 3.5″ = 2 TWR (12TB) Max 2.5″ = 4 TWR (2TB) |
All HDD: 36TB using 6 x 3.5″ HDD All SSD: 30.48TB using 6 x 2.5″ SATA SSD, 9 x M.2 SSD, and 1 x PCIe AIC SSD |
Up to 6 total drives Max M.2 = 2 (4TB) Max 3.5″ = 4 (16TB) Max 2.5″ = 4 (8TB) |
Up to 6 total drives Up to 4 internal storage bays Max M.2 = 2 (4TB) Max 3.5″ = 4 (16TB) |
Up to 12 total drives Up to 4 internal storage bays Max M.2 = 2 (4TB) Max 3.5″ = 6 (36TB) Max 2.5″ = 10 (20TB) |
Up to 12 total drives2 Up to 4 internal storage bays Max M.2 = 2 (4TB) Max 3.5″ = 6 (36TB) Max 2.5″ = 10 (20TB) |
Up to 10x Storage Drives Up to 2x M.2 SATA (Boot Drives) Up to 8x 3.5″ (Max. 112TB) |
| Maximum Power Supplies | Single 350W | Single 380W | Single 500W | Single 1000W | Single 650W | – | Single 1000W | 1400W | 1+1 Redundant Hot Swap 1100W (230V/115V) Platinum Efficient 1600W (230V) Platinum Efficient |
| GPU Options | Nvidia Quadro P620/P1000 | Nvidia Quardo P400 / P620 / P1000 | Nvidia Quardo (2) P400,(2) P620,(2) P1000,(2) P2200, RTX4000,RTX5000 | Nvidia Quadro P400 to P6000 or RTX 4000 to RTX 8000 or GV100 | Nvidia Quadro P400 to P6000 or RTX 4000 to RTX 5000 | Nvidia Quadro P620 to RTX 8000 or GV 100 or AMD Radeo Pro | Nvidia Quadro P400 to P6000 | Nvidia Quadro P400 to RTX 8000 or GV100 | “Up to 2x NVIDIA Quadro RTX 5000 Up to 2x NVIDIA Tesla V100 Up to 4x NVIDIA Tesla T4 GPUs” |
| NVMDIMM Memory | |
|
|
|
|
|
|
|
|
| Ext/Optical Drive Bay | External Optical Drive Available | |
|
|
|
|
|
|
|
| NVMe Drive Option | |
|
|
|
|
|
|
|
|
| Physical Dimensions | Height: 179 mm (7.0 in). Width: 37 mm (1.5 in). Depth: 182.9 mm (7.2 in) | Height: 339.5 mm (13.4 in). Width: 92.5 mm (3.6 in). Depth: 309.7 mm (9.3 in) | Height: 376 mm (14.8 in). Width: 170 mm (6.7 in). Depth: 315.35 mm (12.4 in) | 165mm/6.5″ W x 460mm/18.1″ D x 440mm/17.3″ H (with feet) | 175mm/6.89″ W x 426mm/16.77″ D x 376mm/14.8″ H | – | 175mm/6.89″ W x 485mm/19.1″ D x 446mm/17.6″ H | 200mm/7.87″ W x 620mm/24.4″ D x 446mm/17.56″ H (with feet) | Height: 87 mm (3.4 in). Width: 445 mm (17.5 in). Depth: 720 mm (28.3 in) |
| Maximum Weight | 3lb (1.4kg) | 12.6lb (5.7kg) | 20.7lb (9.7kg) | 52.91lb (24kg) | 31.97 lb (14.5kg) | – | 52.25 lb (23.7kg) | 71.3 lb (32.3kg) | 70.54 lb (32 kg) |
